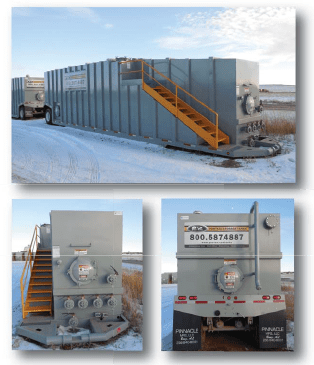

500 BBL Portable Bulk Liquid Storage Tank with Internal Manifold
• 500 bbl (21,000 gallons) capacity
• 45’ L, 102” W, 11’ 1¼”H
• 1/4” plate construction: A36 smooth wall, round bottom, no internal bracing
• Hutch 9700 spring suspension round, 77.5” track, 22.5K capacity axle
• 11R22.5 tires, 14 ply radial
• Passenger side stairs: bolted, fixed handrail with landing
• Epoxy interior coating
• Polyurethane external paint
• Asphalt based undercoating
• (4) 22” diameter manways; front, roof, rear, passenger sige
• Pressure/vacuum relief valve (16 oz.\in2 pressure – 0.4 oz.\in2 vacuum)
• (2) 4” butterfly valves – front drain & rear clean-out
• Feed Line: 3” front nipple with cap and 3” rear with cap
• (1) 6” blind flange connection – rear wall
• (2) 4” blind flange connection; roof at manway and at rear
• (1) 2” sample port with cap – roof at manway
• Gel Line: 4” pipe with 4” butterfly valve connection; mid-high, front wall
• 8” internal manifold with (4) 4” butterfly valve connections
• 8” internal turndown
To the best of our knowledge the technical data provided is true and accurate at the date of publication, but is subject to change without prior notice. 05/12/15
