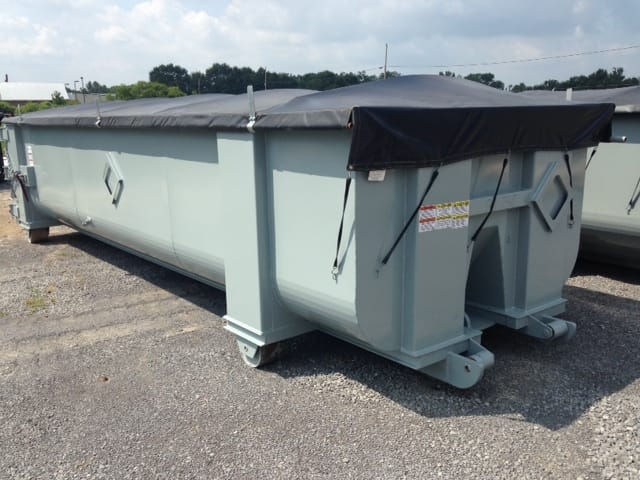

Sludge Tank 25 Yard25 Yard Sludge Storage Tank

• 25 yard capacity
• 22’ L x 96” W x 52” H
• Radius bottom
• 1/4” 1-piece floor
• 3/16” sides, front, & tailgate
• Polyurethane exterior paint
• 4” x 3” x 3/16” top cap tube
• 3” x 4” channel floor cross-members on
16” centers
• 6” x 2” x ¼” tube rails – 36” inside
• 1-1/4” cable hook with ¾” hook plate
• Solid 4” diameter x 6” long nose rollers
with grease zerks
• (4) 10” diameter x 8” ground rollers with
grease zerks
• 1/4” push plates on front wall
• 4” x 4” x 3/16” tube door frame
• Grease zerks in tailgate hinges
• (4) ratchet binders with chains on tailgate
• Neoprene, “t” seal on tailgate
• Liner hooks
• Outside ladder

To the best of our knowledge the technical data provided is true and accurate at the date of publication, but is subject to change without prior notice. 05/12/15
