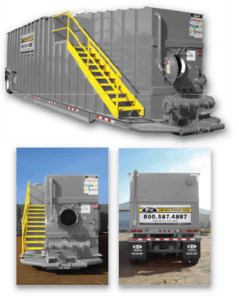

500 BBL Portable Liquid Storage Tank for sale or rent, with External Manifold
DESIGN FEATURES
• Easy-to-Clean Design reduces cost
– Smooth Wall Interior for easy cleaning
– Sloped Floor for complete clean out
– (3) 22” Diameter Manways with Wingnut Closures & Buna-N Gaskets
– No Corrugated Sides, Internal Rods or Bracing
• Integrated Safety Stairway
– 30” Bolt-On Stairway with Landing – OSHA Compliant
– Easy to inspect Top Manway
– No Guardrails to set up or take down
– -No moving parts or pins
• Interior Coating
– Carboline Phenoline 310 High Performance Epoxy Coating
STRUCTURAL DESIGN
• Main Roof, Sides, Ends & Floor: ¼” Thick ASTM A36 Carbon Steel
• 6” x 3” x 3⁄16” Formed Channel Side Supports
ADDITIONAL SAFETY FEATURES
• Safety Stairway eliminates need for workers to get on top of tank
• Grip Strut Steps to prevent slipping
• Handrails and Stairways painted Safety Yellow for high visibility
• Safe Operation reminder decals applied
WEIGHTS AND MEASURES
• Capacity: 500 BBL nominal (21,000 gallons)
• Height 11’0” Grade to Roof Deck
• Width: 8’6” (Outside)
• Length: 46’ 0” (Front Nose to Rear) 42’0” (Tank Body)
• -Weight: 29,950 lbs
STORAGE CONTENT GUIDE
• PV Tanks are constructed with an interior epoxy lining that provides enhanced chemical resistance over unlined tanks.
• For a complete list of TNK500EXT storage capabilities, see www.pacvan.com/tanks/content-guide
FEATURES
• External 8” Frac Port with 8” Valve, 8” Hammer Unions & (4) 4” Front Connection Ports
• 4” Gel Line
• Pressure Relief Valve: 16 oz./in2 Pressure Setting, 0.4 oz./in2 Vacuum Splitting, Buna-N Seal
• Valves: 4” Wafer Butterfly Valve, Cast Iron Body, Buna-N Seat and Seals, 316 SS Cham, Nylon Coated Ductile Iron Disk with Plug and Chain
• Front Drain: 4” 150# Flanged with Butterfly Valves
• Drain Rear: 4” 150# Flanged with Butterfly Valves
• Float Gage
• -Front Feedline: 3” with Cap and Chain
• Rear Feedline: 3” with Cap and Chain
• Roof connections: (1) Vapor Recovery with 4” 150# Threaded Flange and Plug, (1) Auxiliary Port with 4” 150# Threaded Flange and Plug, (1) Gagging Port with 2” Threaded Plugged Port
To the best of our knowledge the technical data provided is true and accurate at the date of publication, but is subject to change without prior notice.
