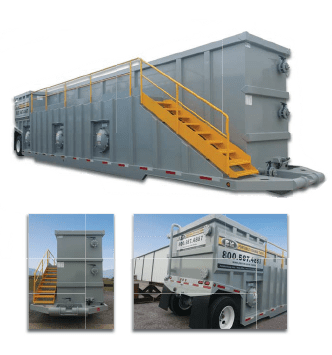

424 BBL Weir Tank

424 BBL Weir Tank

• 424 bbl (17,800 gallons) capacity
• 45’ L, 102” W, 11’ 1 -1/4” H
• 1/4” plate construction, A36
• 1/4” over/under weir system installed
• Open top
• Hutch 9700 spring suspension
• 5” round, 71.5” track, 22.5K capacity axle
• 11r22.5 tires, 14 ply radial
• Epoxy interior paint
• Epoxy primer, polyurethane exterior paint
• (3) 25” manways on passenger side
• (4) 4” butterfly valves – front drain, front
mid-high, front top and rear clean-out
• 3” rear feed line
• (2) 4” flange connections on rear wall

To the best of our knowledge the technical data provided is true and accurate at the date of publication, but is subject to change without prior notice. 05/12/15
